NeuroVue® Maroon - Filter Square For Neuronal Tract Tracing

NeuroVue^® Dye Filter is useful for neuronal tract tracing studies of up to 3-4 weeks. Spectrally compatible with most fluorescent genetic tags, and NeuroVue^® Red, Orange & Emerald.

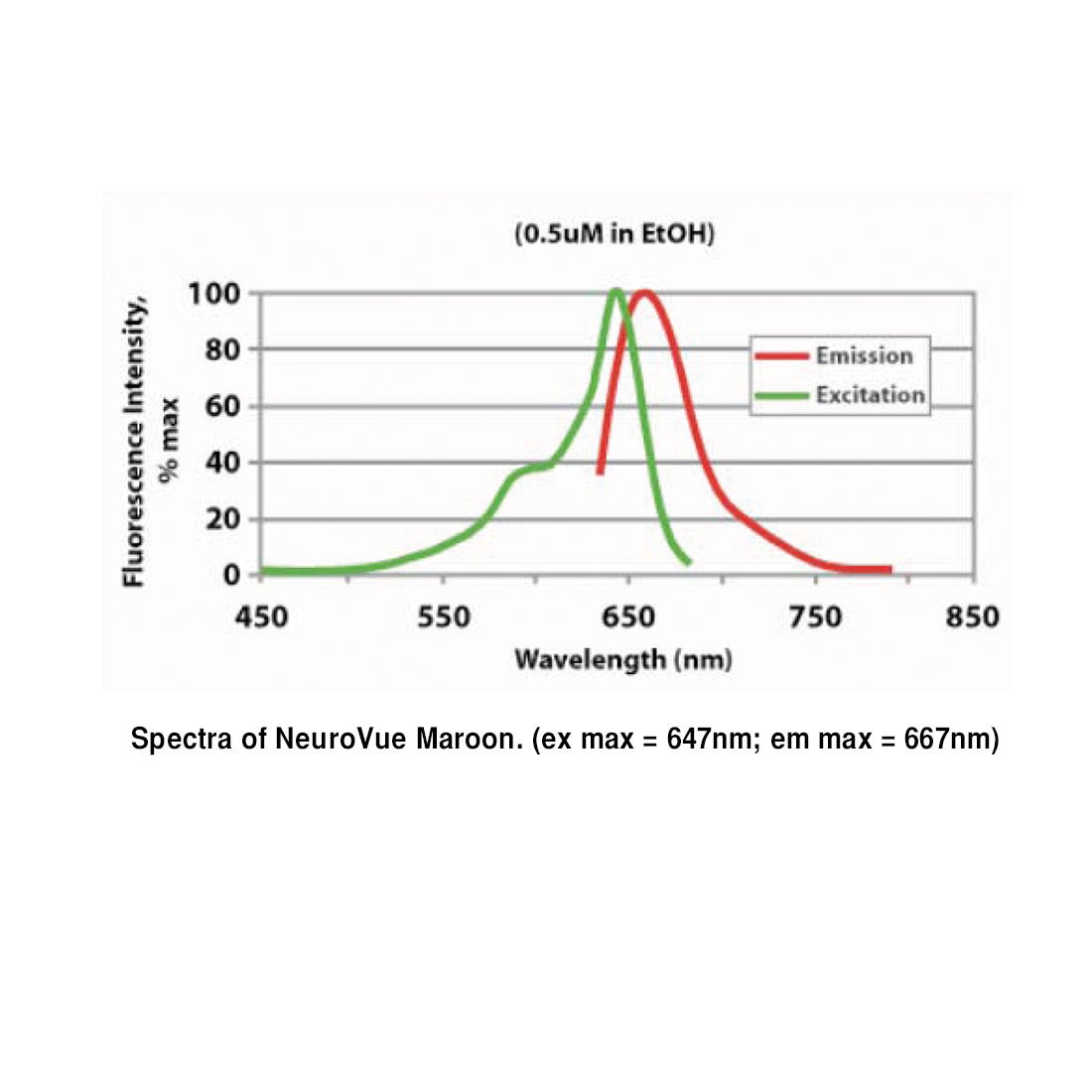

1cm² filter coated with the lipophilic far red emitting dye, NeuroVue^®

Maroon (ex max=647nm; em max=667nm).

Advantages:

• Convenient, ready-to-use coated filter format More precise control of dye insertion point
• No messy oils, pastes or hard-to-position crystals
• Diffusion properties comparable to or better than other commercially available neurotracing dyes
• More focal results (e.g. labeling of small sets of axons within a pathway)'
• Available in multiple colors, including far red, for multi-tract tracing and improved results even in tissues with high myelin expression

Publications:

Diffusion and Imaging Properties of three new lipophilic tracers, NeuroVue^® Maroon, NeuroVue^® Red and NeuroVue^® Green and their use for double and triple labeling of neuronal profile. B Fritzsch et al. Brain Res Bull., 66, 3, 249-258 (2005).

A disorganized innervation of the inner ear persists in the absence of ErbB2. JK Morris et al. Brain Res.,1091:186-199 (2006).

Deafferentiation induces novel projections in the auditory brainstem after hearing onset. CY Hsieh and KS Cramer. Journal of Comparative Neurology, 497:589-599 (2006)

Al-Mehdi AB, Patel M, Haroon A, Reed D, Ohlsson-Wilhelm B, Muirhead K and Gray BD. Increased Depth of Cellular Imaging in the Intact Lung using Far Red and Near Infrared Fluorescent Probes. Int. J. Biomed Imaging. 1-7 (2006).

Stewart CC, Woodring ML, Podniesinski E and Gray BD. Flow cytometer in the infrared: inexpensive modifications to a commercial instrument. Cytometry, Part A, 67A, #2, 104-111, 2005

NeuroVue is a registered trademark of PTI Research, Inc. For patents see list.
